SPECIFICATIONS

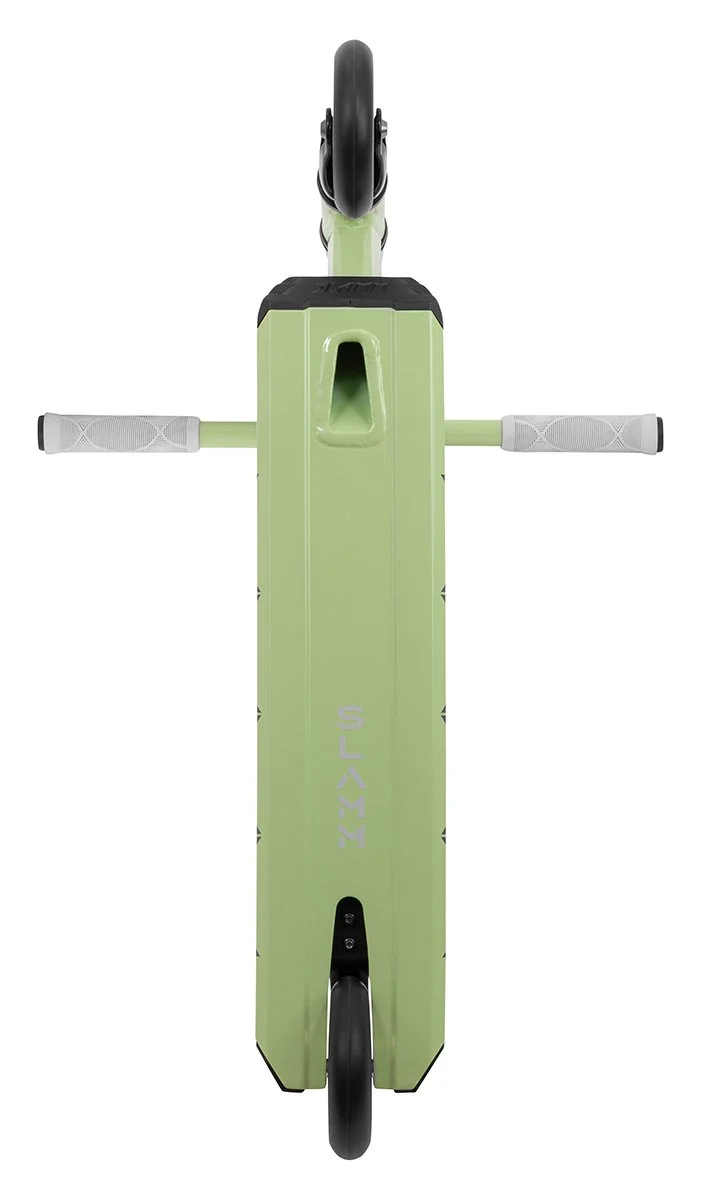

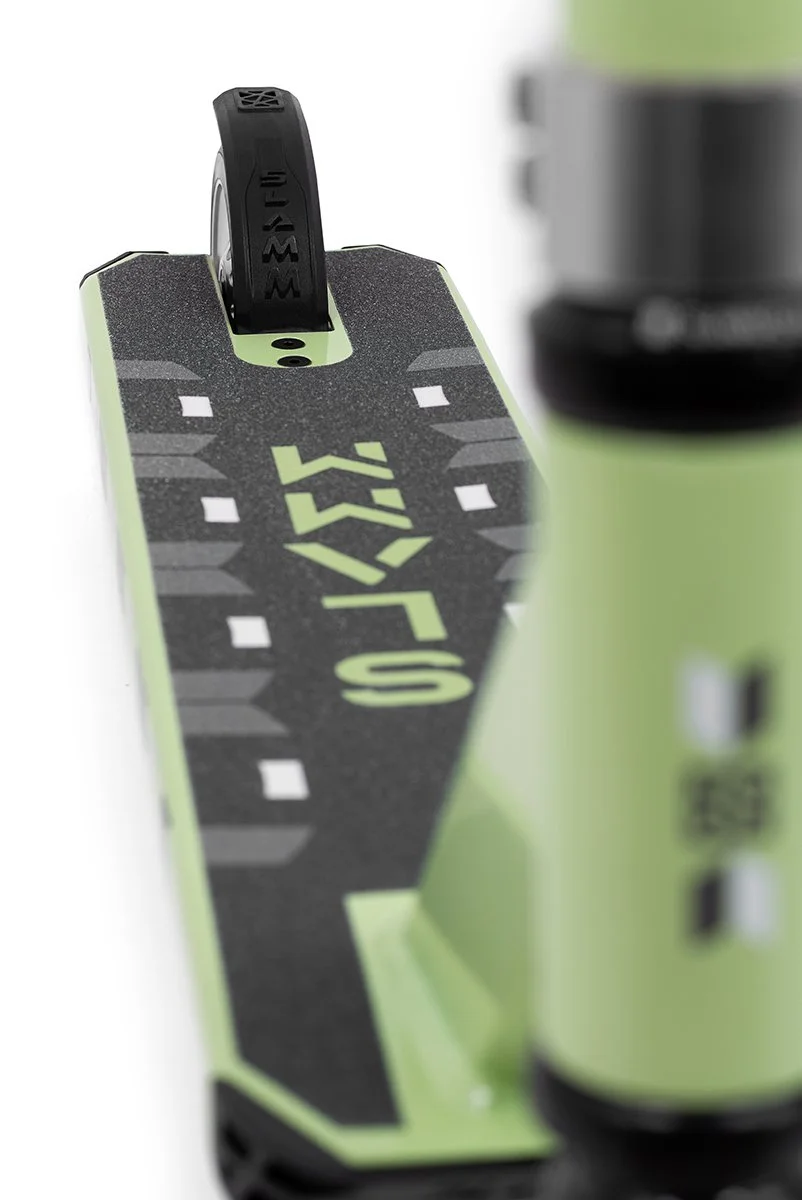

DECK
W 4.5″ x L 19″ / W 11.50cm x L 48.30cm
T6 Heat Treated Aluminium Boxed Channel Deck
Press Fit Headtube
Front and Rear Nylon Deck Block Inserts
NECK
Slamm Exclusive Extruded Coffin Connector
BAR
W 20.5” x H 22.5” / W 52cm x H 57cm
Steel Riser T-Bar
CLAMP
Double Clamp Anodised Finish
HEADSET
Pressed Semi-Sealed Threadless Headset
Threadless Internal Hidden Compression (IHC) System

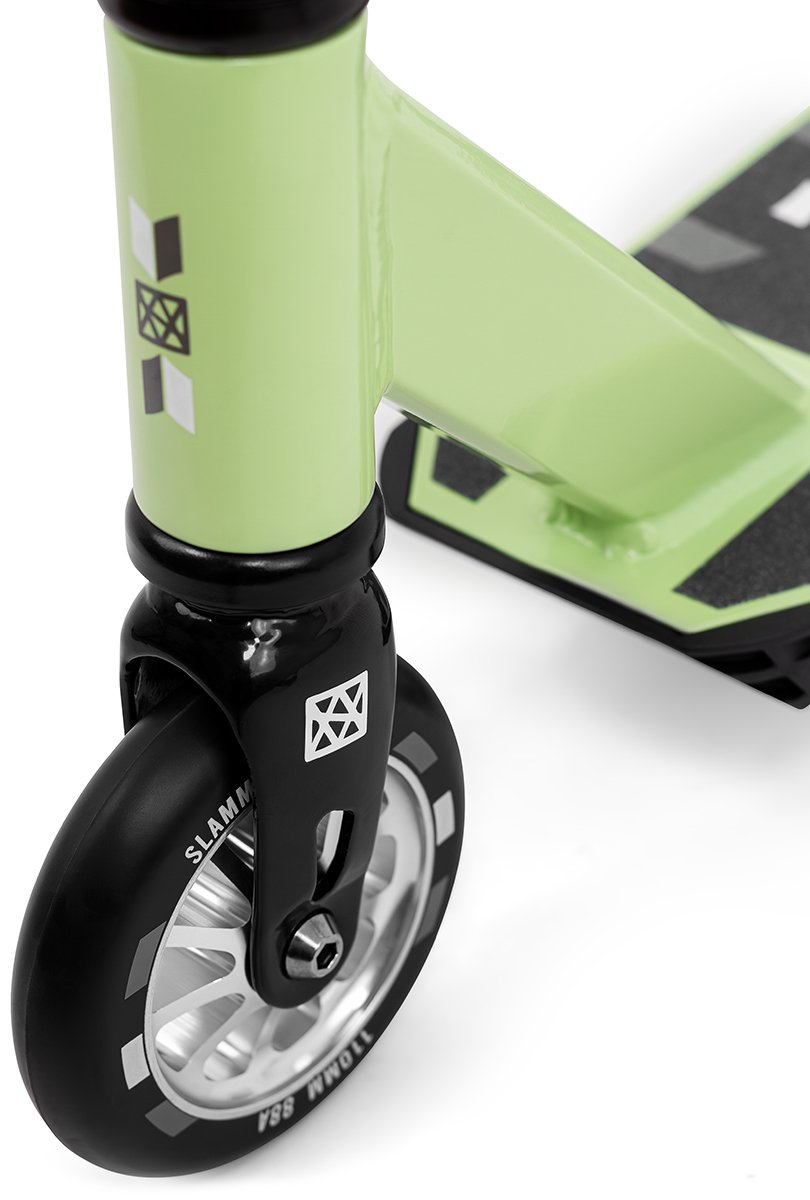

FORK
Slamm Steel Fork Two-Sided Print Threadless
Accepts 110mm Wheels
GRIPS
135mm Team Grips with Impact Resistant Bar Ends

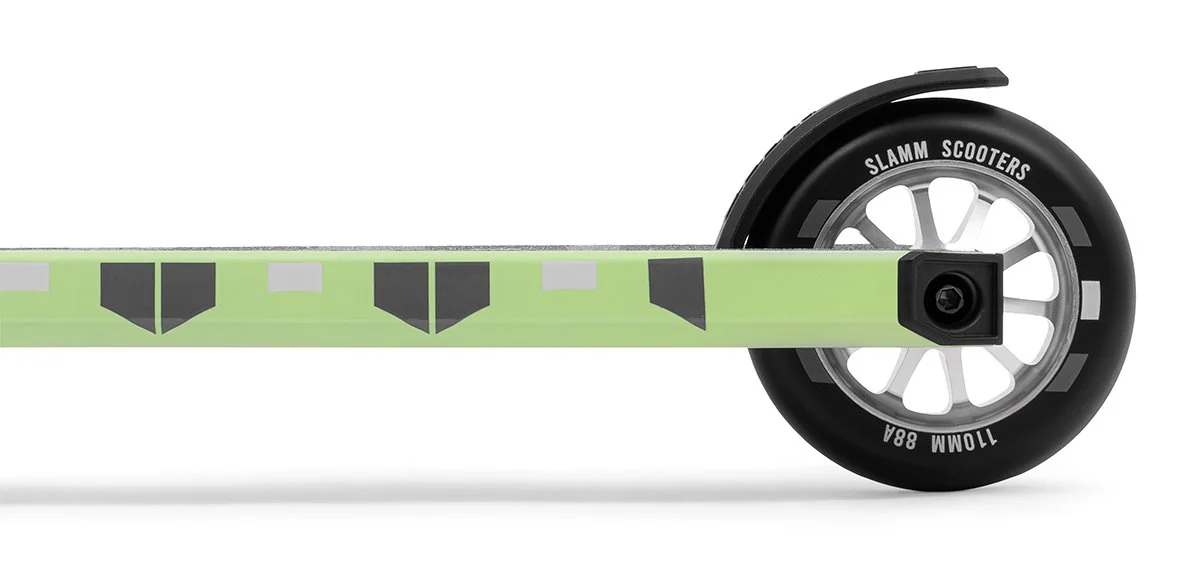

WHEELS
110mm Anodised Alloy Core
88A NHR High Rebound High Wear Resist Urethane
One-Sided Wheel Print
BEARINGS
ABEC-9 Chrome Bearings with Black Rubber Shield
RECOMMENDED AGE
8+ Years
MAXIMUM RIDER WEIGHT
100kg
OVERALL DIMENSIONS
Height: 32” / 81.5cm
Length: 26.7” / 68cm
Width: 20.7” / 52cm
Ride Height: 29.9” / 76cm
Ride Height is between the top of the deck and the top of the bar grips
TEST STANDARDS
EN14619
