SPECIFICATIONS

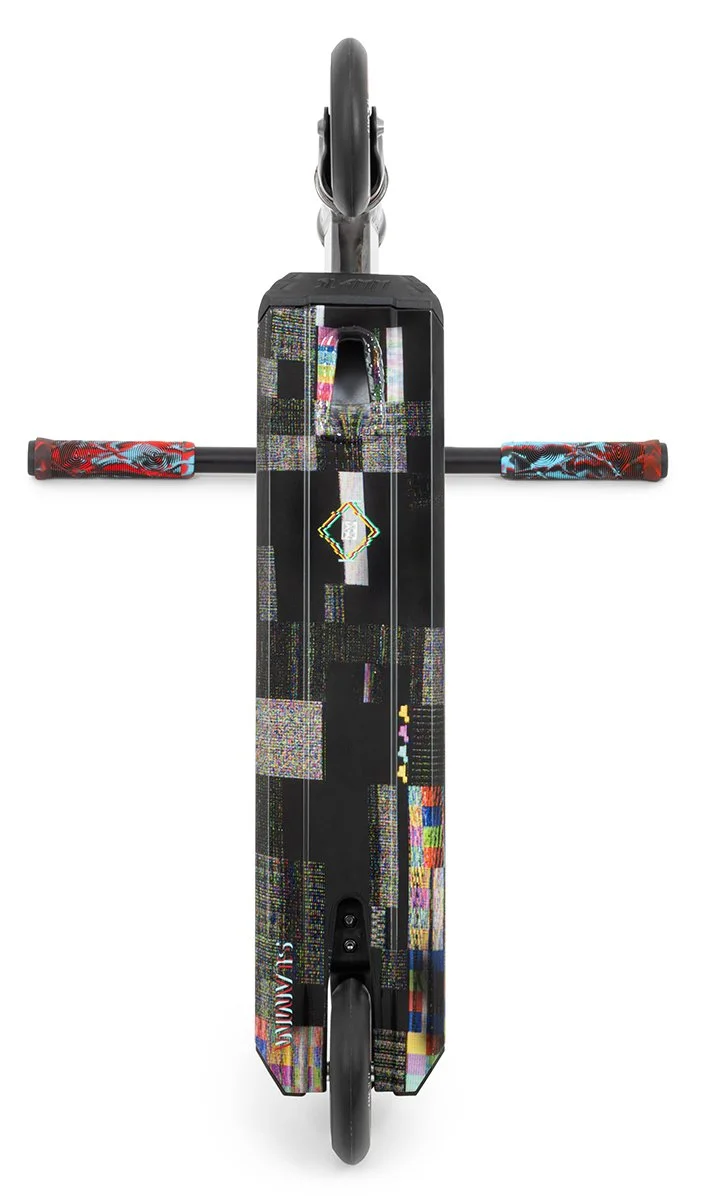

DECK
W 4.5″ x L 19.5″ / W 11.50cm x L 49.50cm
T6 Heat Treated Aluminium Boxed Channel Deck
Integrated Headtube with CNC Cut-out
Front and Rear Nylon Deck Block Inserts

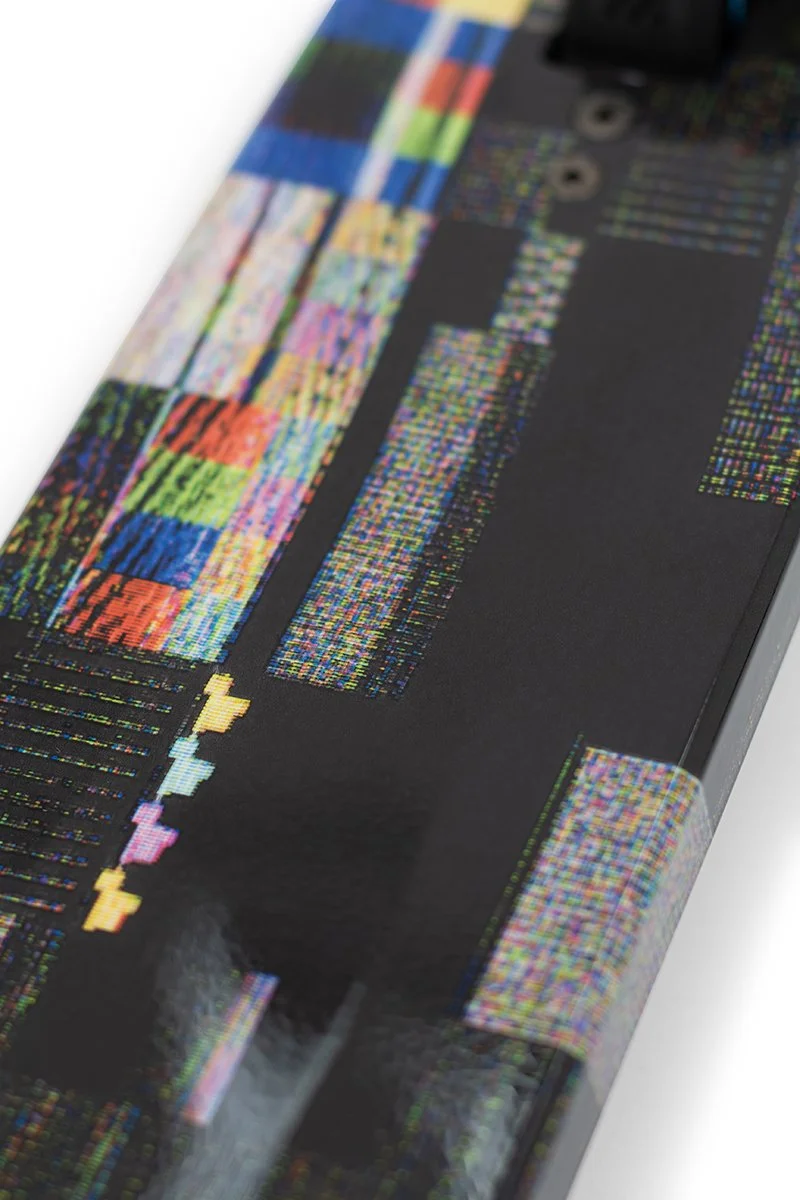

High-quality Full Deck Hydro Wrap

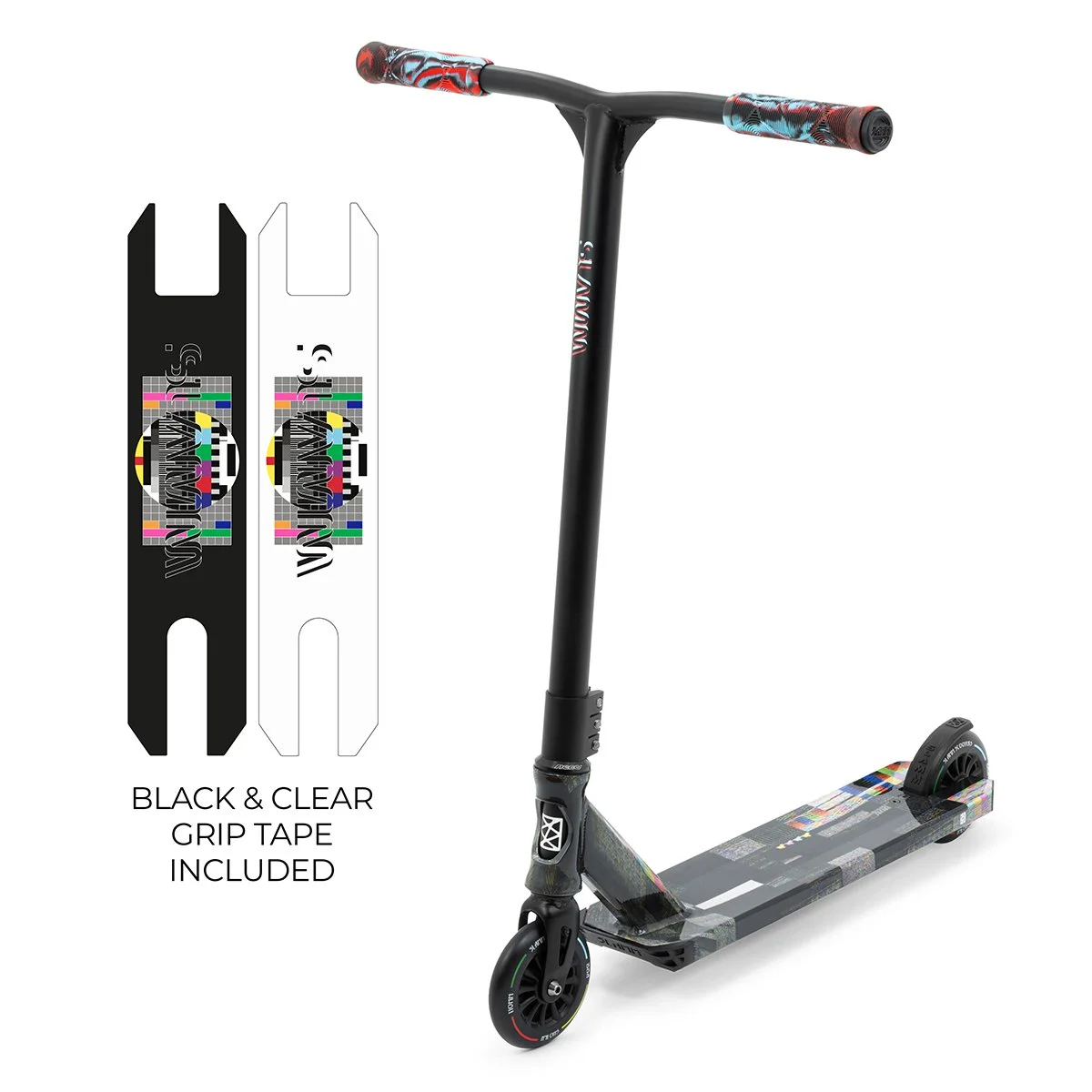

Supplied with Pre-cut Black and Clear Grip Tape Sheets

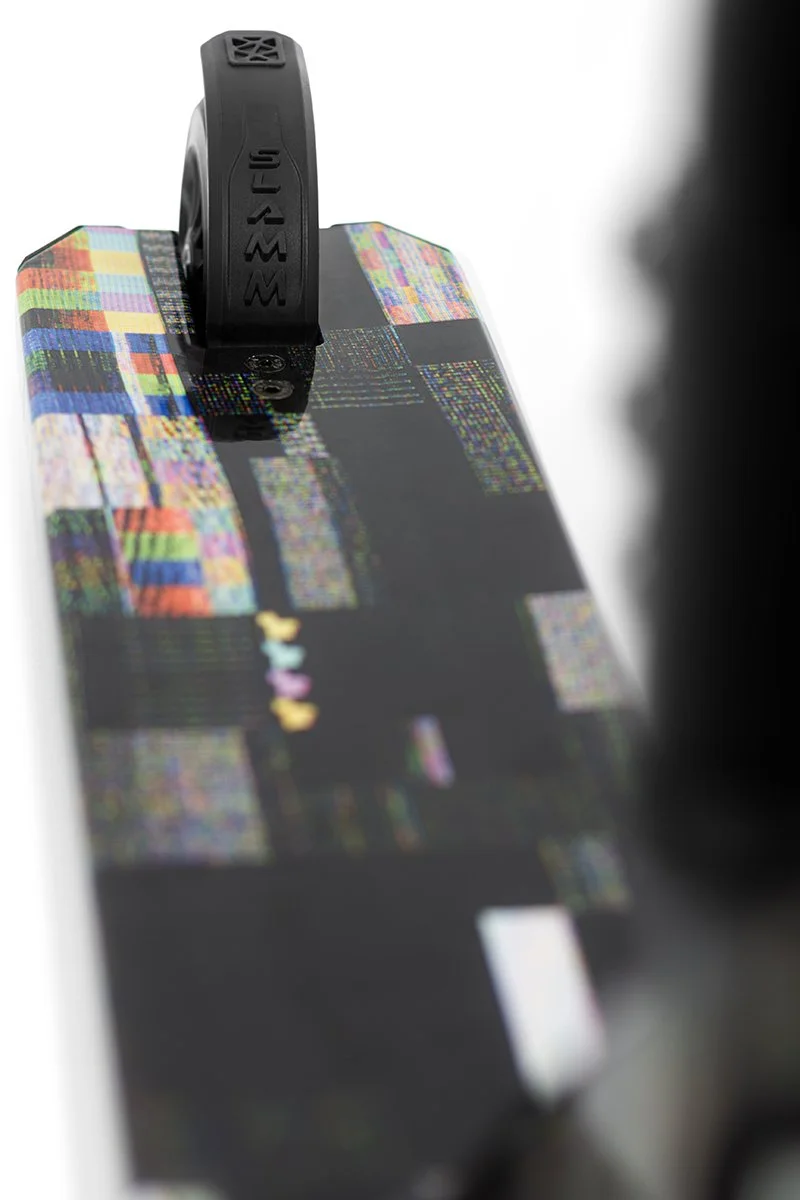

Slamm Nylon Flex Fender with Steel Insert
NECK
Slamm Exclusive Extruded Coffin Connector
BAR
W 20.5” x H 22.5” / W 52cm x H 57cm
Reinforced Steel Riser T-Bar
CLAMP
Triple Bolt Clamp
HEADSET
Integrated Semi-Sealed H-52 Threadless Headset with Black Shim
Threadless Internal Hidden Compression (IHC) System
FORK
Threadless Punched Steel Fork
GRIPS
135mm Team Swirl Grips with Impact-Resistant Bar Ends

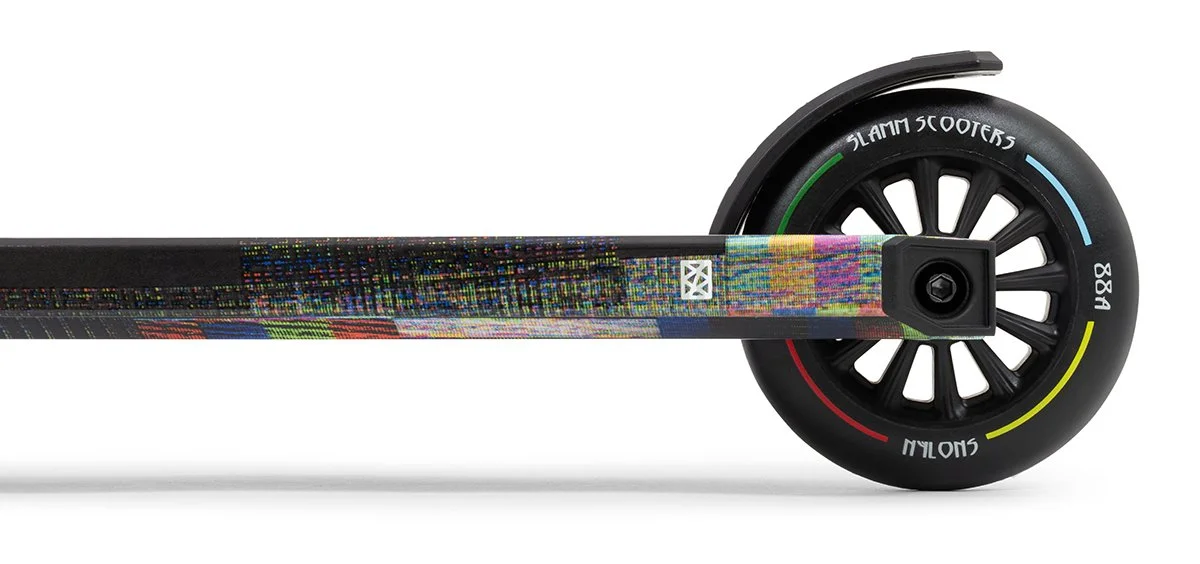

WHEELS
110mm Nylon Core
88A HR High Rebound
BEARINGS
ABEC-9 Chrome Bearings with Black Rubber Shield
RECOMMENDED AGE
8+ Years
MAXIMUM RIDER WEIGHT
100kg
OVERALL DIMENSIONS
Height: 31.9” / 81.5cm
Length: 26.8” / 68cm
Width: 20.5” / 52cm
Ride Height: 29.9” / 76cm
Ride Height is between the top of the deck and the top of the bar grips
SCOOTER WEIGHT
3.70kg
TEST STANDARDS
EN14619:2015
